Power Output：1000W

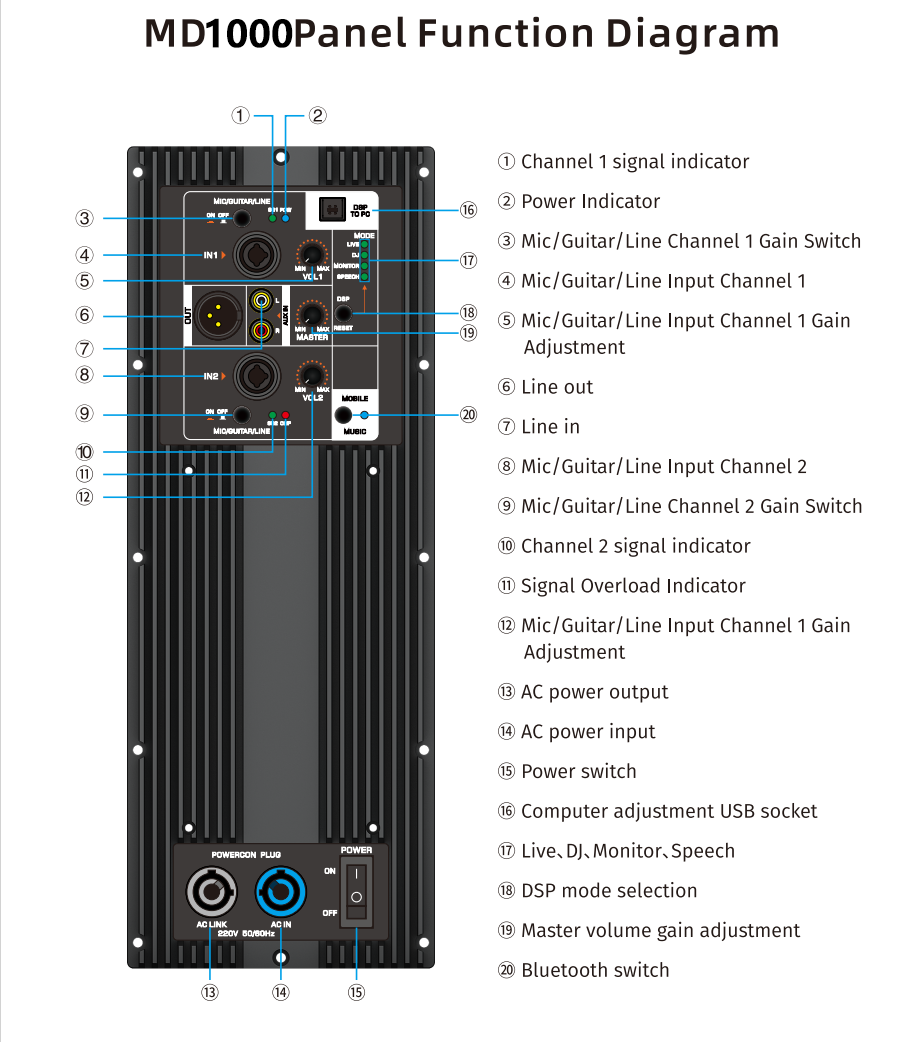

Indicators：Power, Signal A, Signal B, Standby, Limit, Mic
Cooling：On demand, 50 mm variable speed fan
Transducer Protection：Thermal limiting, excursion limitin
Dimensions(W*H*D)mm：400*758*55
G weight：2.8KG
Output Circuitry：Class D

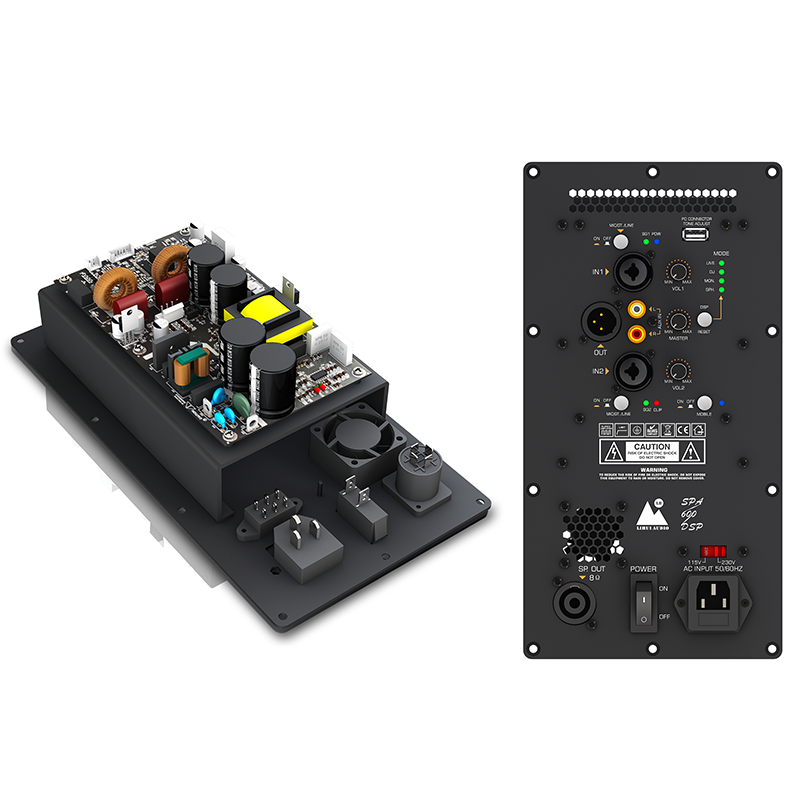

Name：Professional Power amplifier Module
For：Full-range speakers
- Product Details

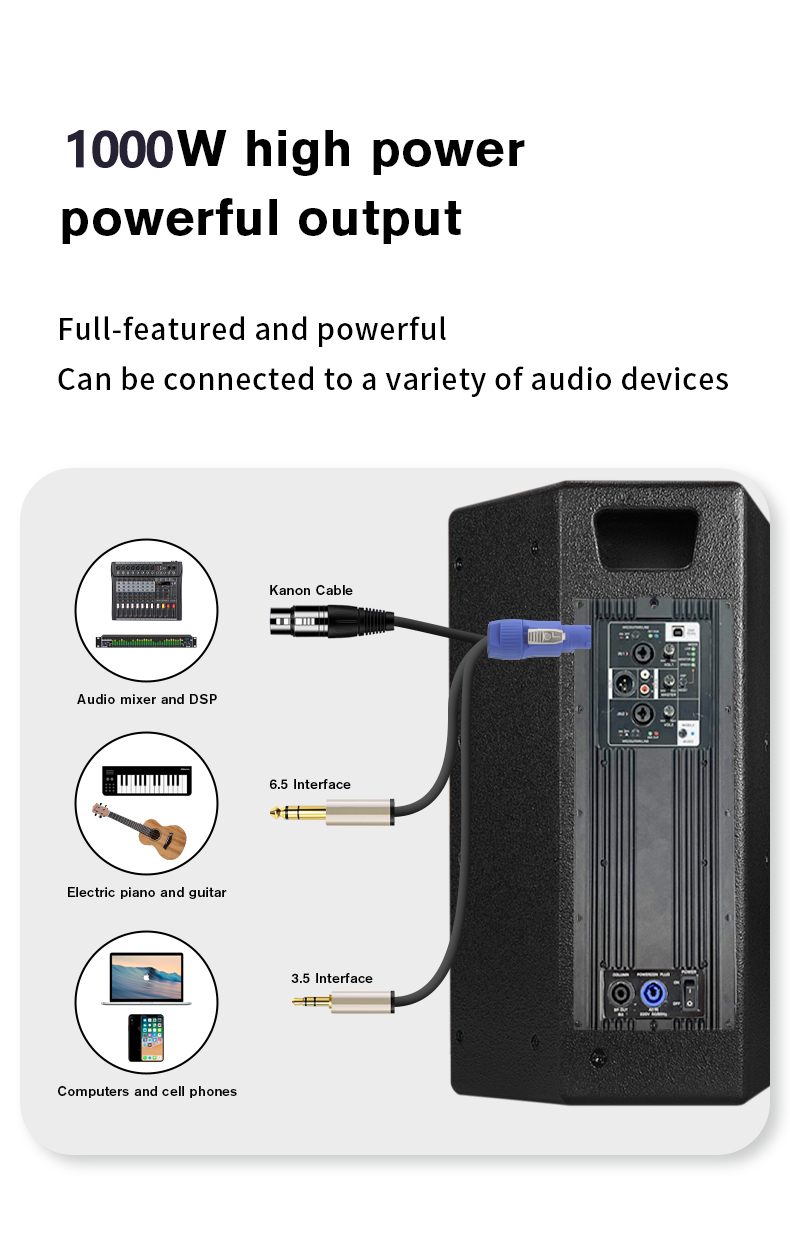

System combination
This module can combine the following systems.
High-power 2-channelfull-frequency system.
Subwoofer system.
2 channels of fullfrequency, one support for one system.
Smallline array or subwoofer plus satellite box.
Features
Bluetooth playback.
Panel speaker output socket can be connected to passive speakers.
The linear output socket can be connected with active speakers in parallel.
The fan is controlled by temperature.
4-channelaudioinput.
Dsp four sound modes.
