1)Including 2-way balanced microphone input, which can also be used as guitar input;
2)Contains 2-way balanced line input, can be connected to the mixer, has a switch, can be switched change choice
3)The two-way microphone and line input both use a hybrid multi-functional seat, which can be connected to a XLR or a 6.3 socket,
which is convenient for inputting a variety of audio devices
4)1 RCA line input, which can be connected to mobile audio sources such as CD players or mobile
5)DSP sets 4 scene modes:Live/DJ/Monitor/Speech
6)High-efficiency intelligent heat dissipation mode, the fan is controlled by temperature, the temperature rises, the wind speed
accelerates quick.
7)DSP PC adjusts the USB interface, with a dust cap to prevent foreign matter or dust from entering
8)Short circuit, overload high frequency output protections
- Product Details
MT1000

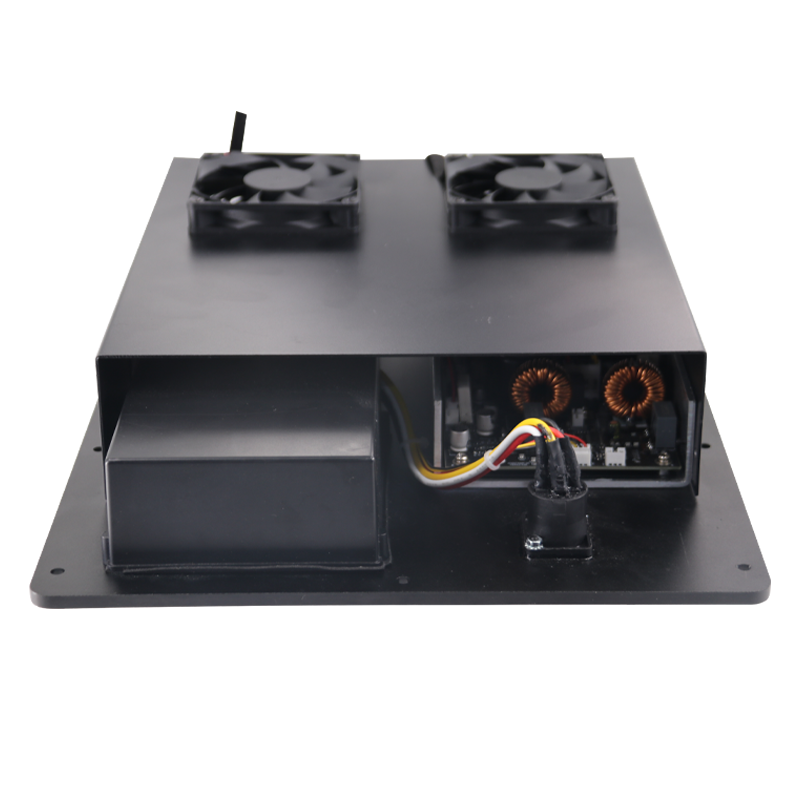

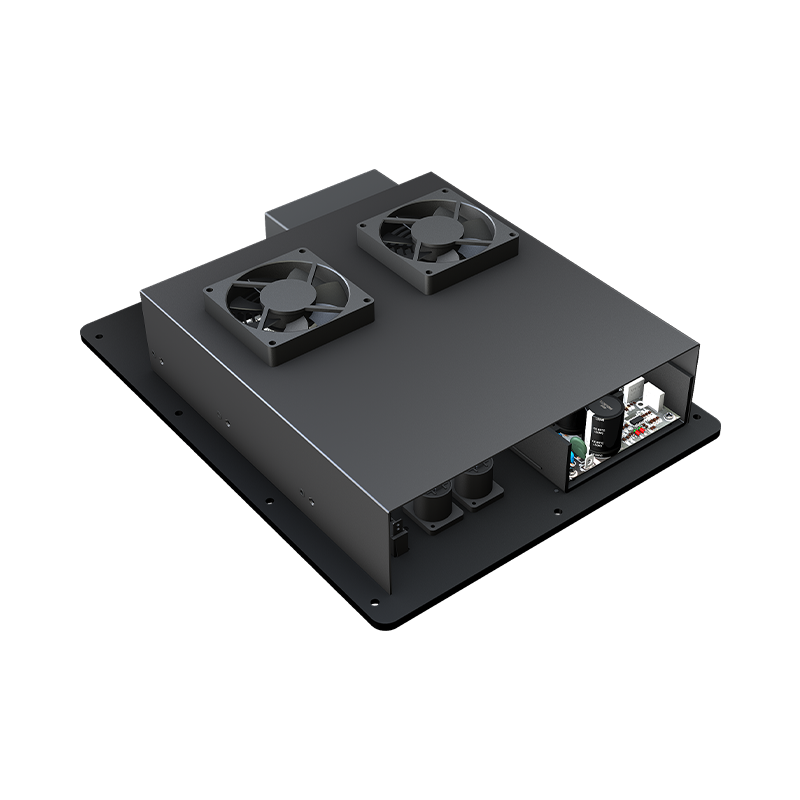

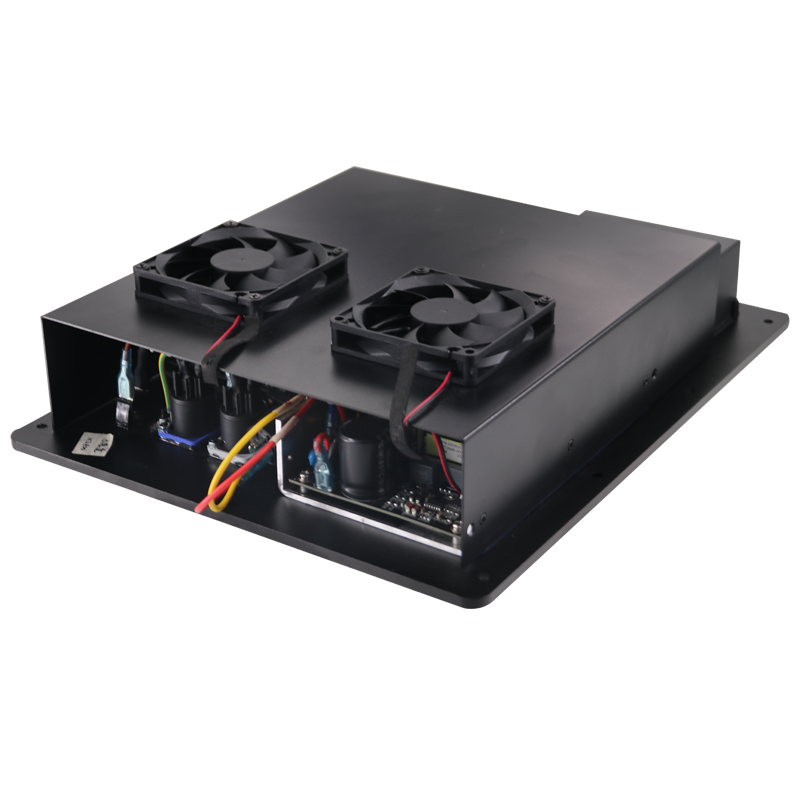

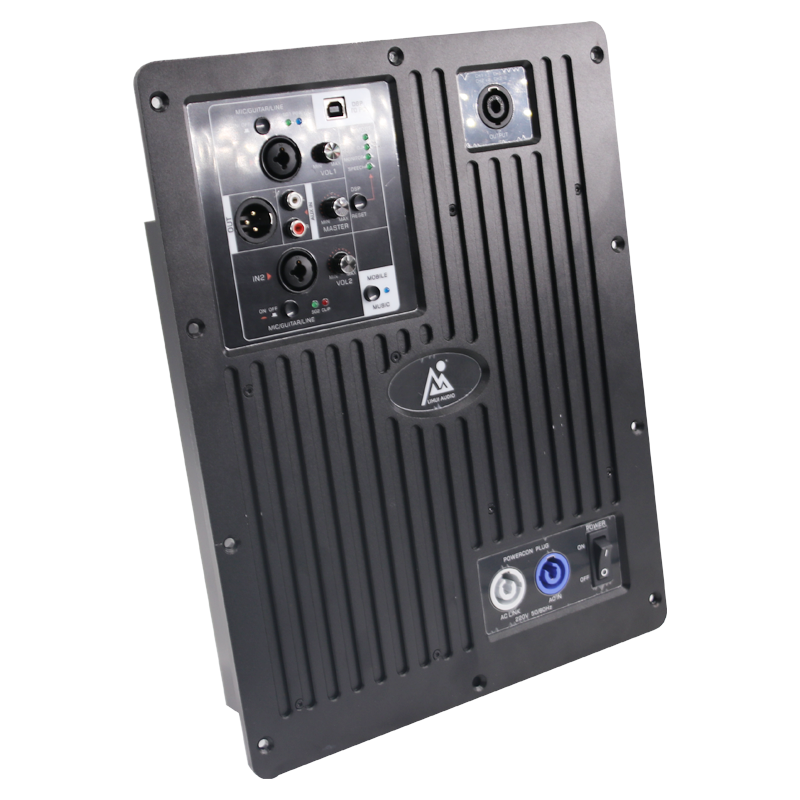

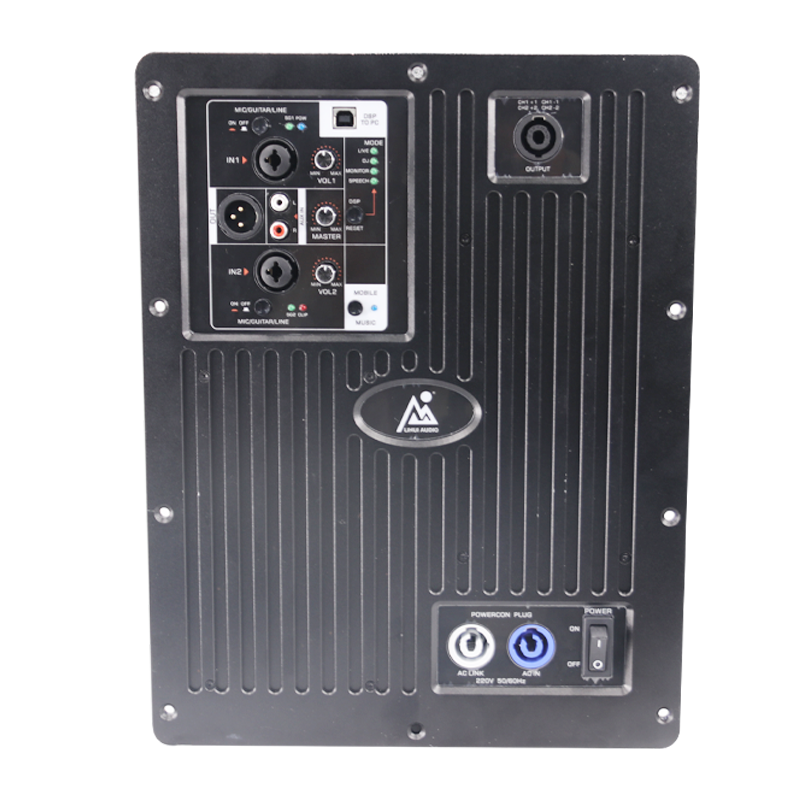

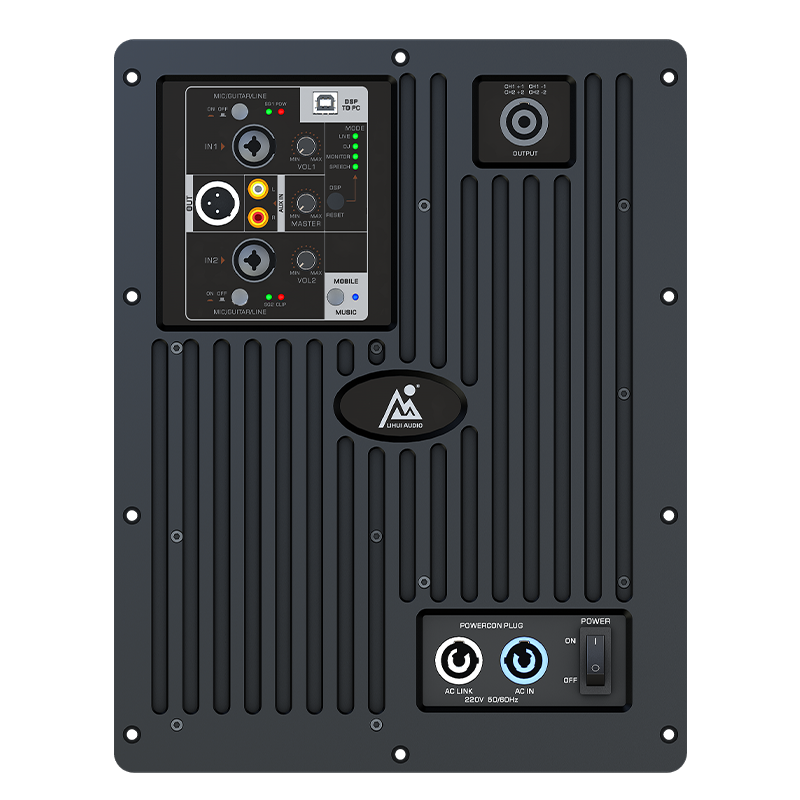

High Efficiency 3-Channel Class-D Amplifier Module for professional Applications
This is an amplifier module adopts efficient supply technology and unique class D technology.Small size, high power,light and portable.; built-in high-quality DSP,can be matched with various forms of cabinets and speakers, and the sound is beautiful and pleasant.
Moreover,the module is designed with 3-way high-power amplifier output,and with DSP, it can be applied to styles of speaker combinations, such as 3-way full-frequency speaker; column and line array, and can also be designed to realize one-to-two use.
Output: 400watt+400watt+1200watt 8ohm
600watt+600watt 4ohm
Frequency Response:20 Hz- 20 kHz ( +0/-1 dB)@ 1 w,8Q
S/N:100 dB(A weighted)
Degree Of Separation:-65 dB@ 1 kHz(4Q)
Input Sensitivity:1v /+0 dBv
lnput lmpedance:10 k ohm balanced
Total Harmonic Distortion:<1% from 0.1 W to full power typically <0.05%)
Damping Factor:>300 @ 100 Hz
Power Supply Voltage: 115V/230V 50-60Hz
