Applications

• Mobile performance / portable sound reinforcement.


• KTV/Bar/Concert Hall.


• Gymnasium /Arena.

Features

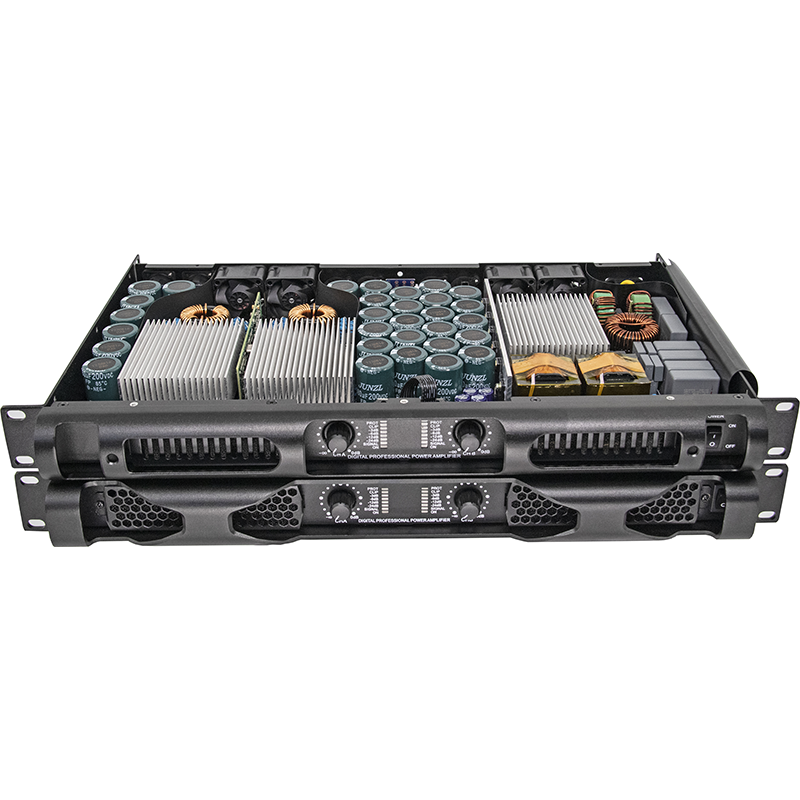

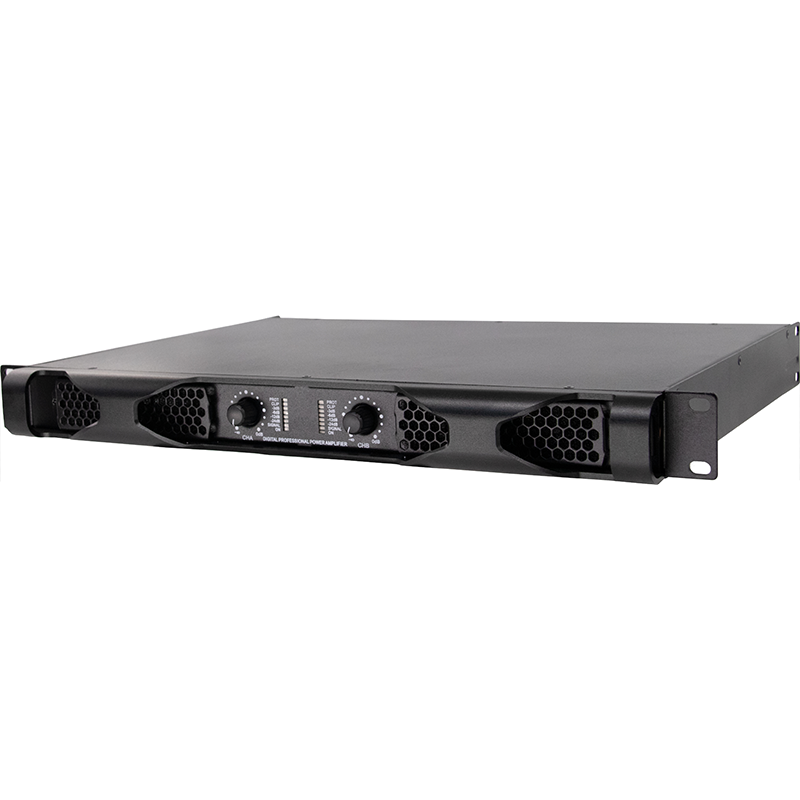

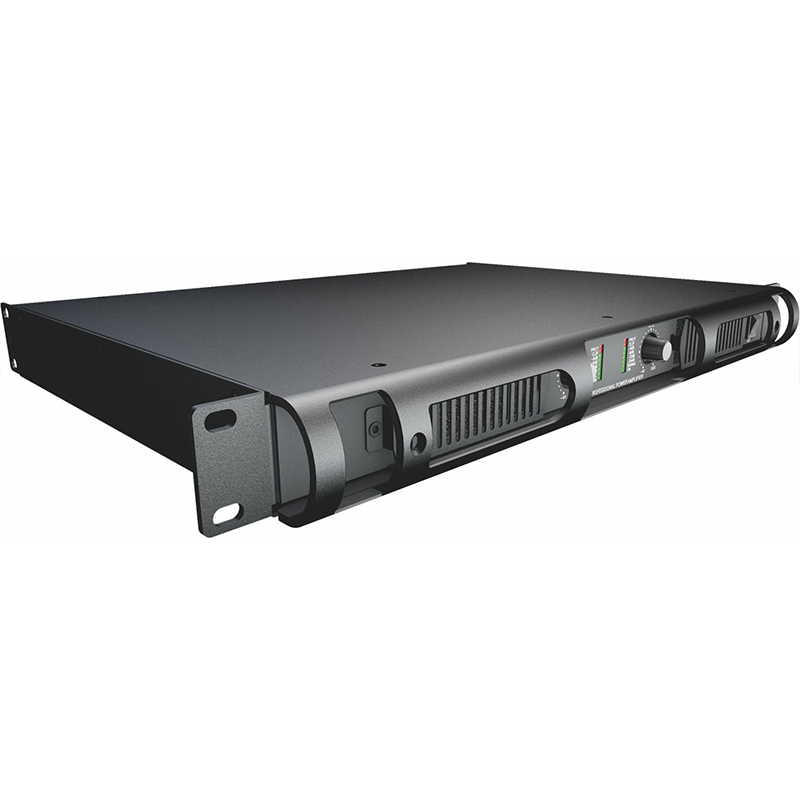

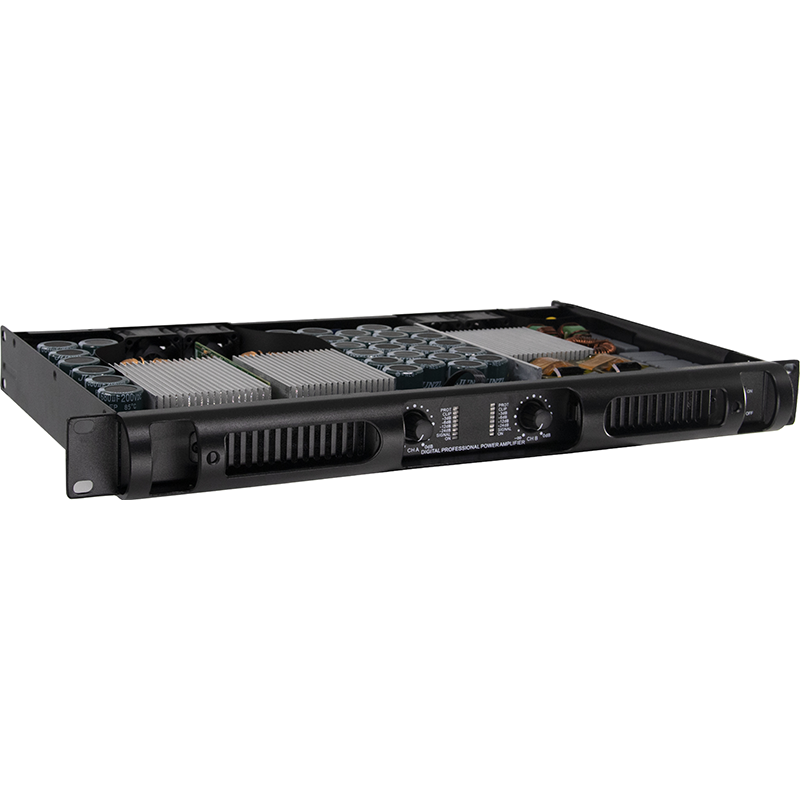

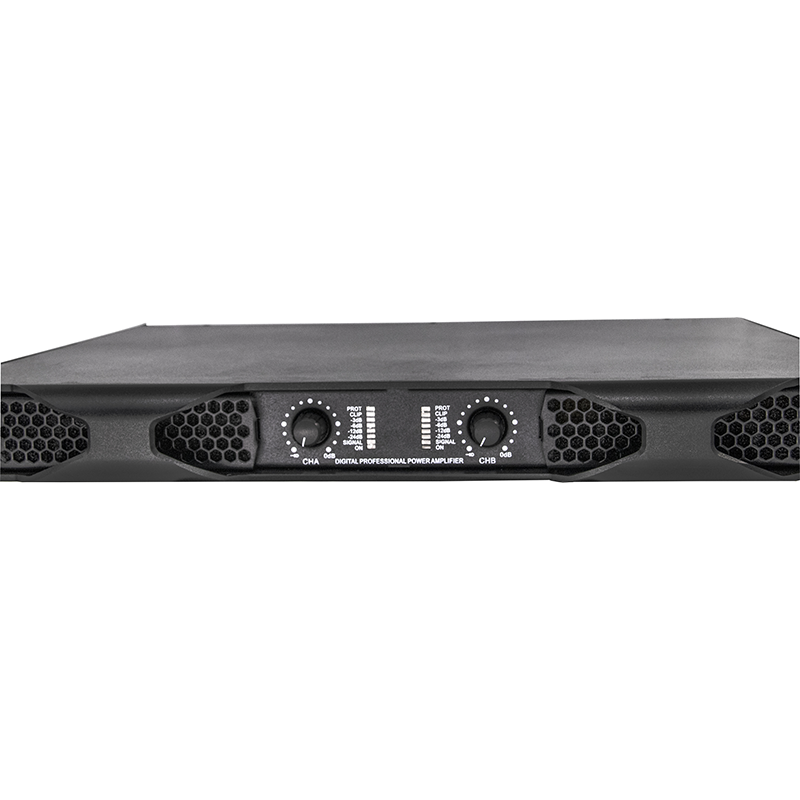

• 1U height standard chassis, lightweight and compact.

• Class D power amplifier module with fixed switching frequency.

• Soft Switch LLC Resonant Switching Power Supply Module.

• Active Power Factor Correction (PFC)for stable operation.

• Efficientspeaker back EMF absorption system.

• Unique peak clipping limiter and ripple elimination network.

• Temperature-controlled variable speed fan, airflow from front to back.

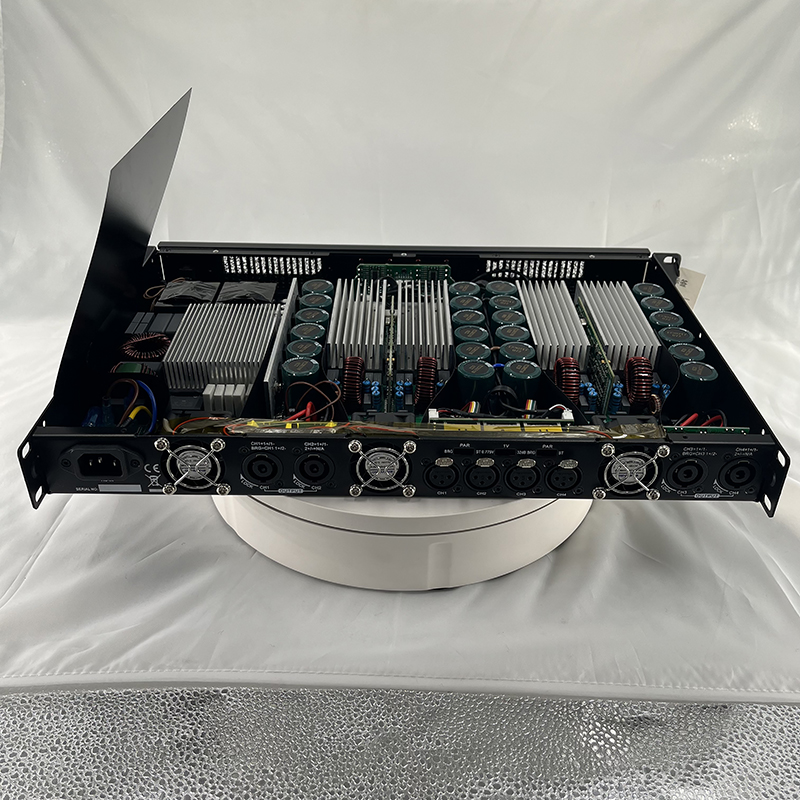

• mode selection (stereo/parallel/bridge) setin rear panel.

• Input sensitivity selected (0.775v/1v/2v) in rear panel.

• Perfect circuit protection, including: soft start, DC, sub audio, high frequency, overheat, short circuit, power on/off mute.

• strong power can be felt in low frequence, very clearly and pleasant in mid-hi frequency .

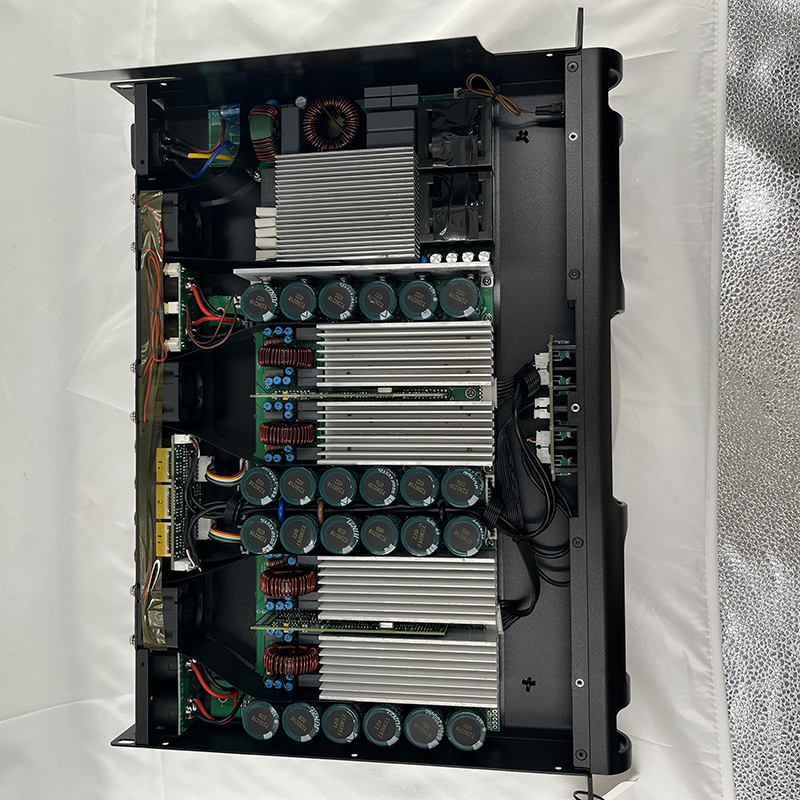

• integrated design of power amplifier module and power module, more than 90% of the devices use automationto ensure product consistency.
